Merkle Proof Verification

For: Application developers and compliance teams who need to independently verify that execution records have not been tampered with after the fact.

Developer Integration | Delegation Tokens | Merkle Proof Verification

Every action executed through Axemere Gateway produces an execution record. Records are hashed, appended to an ordered ledger, and periodically batched into a SHA-256 Merkle tree. The Merkle root is signed by the control plane and anchored to an external timestamp authority (RFC 3161 TSA). You can use the inclusion proof to independently verify that a record existed at a specific point in time and has not been altered.

Table of Contents

• How It Works
• Execution Record Hash
• Ledger and Batching
• Merkle Tree Construction
• Inclusion Proof Format
• Retrieving a Proof
• Verification Algorithm
  • Step-by-step
  • Go example
  • Python example
• External Anchoring (RFC 3161 TSA)
• Root Metadata Schema
• Proof Availability Timing
• Security Properties
• Troubleshooting
• See Also

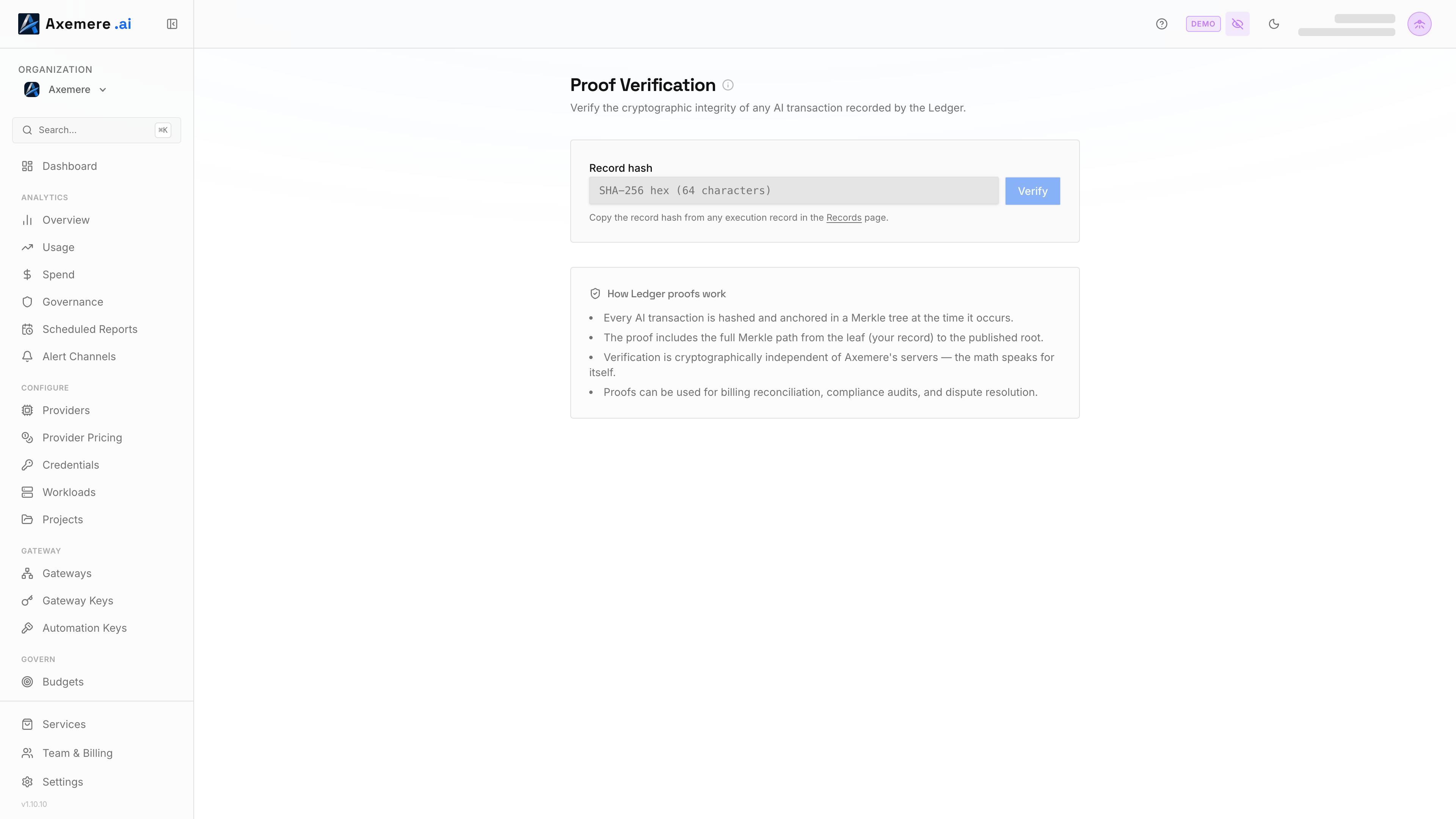

How It Works

Execution Record Hash

Each execution record is hashed using:

1. JCS canonicalization (RFC 8785) of the full execution record JSON document: deterministic key order, no insignificant whitespace.
2. SHA-256 of the canonical bytes.

The result is the record_hash, a 64-character hex string returned in every action response as X-MVGC-Record-Hash and in the response body.

You can independently compute the hash from a stored record copy to verify it matches what is on the ledger.

The record hash covers the signed execution record body, not the HTTP response envelope. Contact your Axemere representative for the full record schema.

Ledger and Batching

• Records are appended to the ledger in submission order with an auto-incrementing ledger_seq.
• The batch job collects records within a sequence range and builds one Merkle tree per batch.
• Batch size and frequency are configured on the control plane. Default: up to 10,000 records per batch, run every 5 minutes.
• A record that arrives after a batch closes is included in the next batch.

Merkle Tree Construction

The tree uses SHA-256 throughout with domain-separated prefixes to prevent second-preimage attacks:

Leaf hash:

leaf_hash = SHA-256( 0x00 || record_hash_bytes )

Internal node hash:

node_hash = SHA-256( 0x01 || left_hash_bytes || right_hash_bytes )

Odd leaf count: When the number of leaves is odd, the last leaf is duplicated for pairing. Leaves are ordered by ascending ledger_seq.

Inclusion Proof Format

The inclusion proof is returned by GET /v1/verify/{record_hash} when the record has been batched:

{
  "schema": "mvgc.inclusion_proof.v1",
  "record_hash": "a1b2c3d4e5f6...",
  "batch_id": "01955f3e-0000-7abc-8def-000000000001",
  "leaf_index": 42,
  "leaf_count": 1000,
  "path": [
    { "side": "right", "hash": "deadbeef..." },
    { "side": "left",  "hash": "cafebabe..." },
    { "side": "right", "hash": "12345678..." }
  ],
  "root": {
    "schema": "mvgc.merkle_root.v1",
    "batch_id": "01955f3e-0000-7abc-8def-000000000001",
    "org_id": "01955f3e-0000-7abc-8def-000000000000",
    "created_at": "2026-03-12T10:05:00Z",
    "hash_alg": "sha256",
    "leaf_count": 1000,
    "ledger_seq_min": 5000,
    "ledger_seq_max": 5999,
    "root_hash": "abcdef01...",
    "anchor": {
      "type": "rfc3161",
      "ref": "<base64-encoded TSA token>",
      "published_at": "2026-03-12T10:05:03Z"
    },
    "sig": { "alg": "ed25519", "kid": "kid_cp_1", "sig": "<base64url>" }
  }
}

path[0] is the sibling of the leaf; path[last] is the sibling of the child that feeds the root.

Retrieving a Proof

GET /v1/verify/{record_hash}
Authorization: Bearer <api_key>

Response — verified (200 OK):

{
  "status": "verified",
  "record_hash": "a1b2c3d4e5f6...",
  "inclusion_proof": { "...": "InclusionProof object" }
}

Response — pending inclusion (200 OK):

{
  "status": "pending_inclusion",
  "record_hash": "a1b2c3d4e5f6..."
}

404 is returned when the record_hash is not known to the gateway at all.

Verification Algorithm

Step-by-step

Given an inclusion proof, verify it as follows:

1. Verify the root.sig Ed25519 signature against the CP's public key (kid from the signature envelope). This confirms the root was produced by the control plane.
2. Verify the root.anchor.ref if you require external time-binding (see External Anchoring).
3. Compute the leaf hash: h = SHA-256( 0x00 || unhex(record_hash) )
4. Walk path from index 0 to last:
   • If step.side == "right": h = SHA-256( 0x01 || h || unhex(step.hash) )
   • If step.side == "left": h = SHA-256( 0x01 || unhex(step.hash) || h )
5. Assert h == unhex(root.root_hash)

If step 5 holds and step 1 verified, the record was included in the signed batch and has not been altered.

Go example

import (
    "crypto/sha256"
    "encoding/hex"
    "fmt"
)

func VerifyInclusion(recordHash string, proof InclusionProof) error {
    recordBytes, err := hex.DecodeString(recordHash)
    if err != nil {
        return fmt.Errorf("decode record_hash: %w", err)
    }

    // Step 1: compute leaf hash
    h := leafHash(recordBytes)

    // Step 2: walk proof path
    for _, step := range proof.Path {
        sibling, err := hex.DecodeString(step.Hash)
        if err != nil {
            return fmt.Errorf("decode path hash: %w", err)
        }
        if step.Side == "right" {
            h = nodeHash(h, sibling)
        } else {
            h = nodeHash(sibling, h)
        }
    }

    // Step 3: compare to root
    rootBytes, err := hex.DecodeString(proof.Root.RootHash)
    if err != nil {
        return fmt.Errorf("decode root_hash: %w", err)
    }
    if !bytes.Equal(h, rootBytes) {
        return fmt.Errorf("proof verification failed: computed %x, want %x", h, rootBytes)
    }
    return nil
}

func leafHash(b []byte) []byte {
    h := sha256.New()
    h.Write([]byte{0x00})
    h.Write(b)
    return h.Sum(nil)
}

func nodeHash(left, right []byte) []byte {
    h := sha256.New()
    h.Write([]byte{0x01})
    h.Write(left)
    h.Write(right)
    return h.Sum(nil)
}

Python example

import hashlib

def leaf_hash(record_hash_hex: str) -> bytes:
    record_bytes = bytes.fromhex(record_hash_hex)
    return hashlib.sha256(b"\x00" + record_bytes).digest()

def node_hash(left: bytes, right: bytes) -> bytes:
    return hashlib.sha256(b"\x01" + left + right).digest()

def verify_inclusion(record_hash: str, path: list[dict], root_hash: str) -> bool:
    h = leaf_hash(record_hash)
    for step in path:
        sibling = bytes.fromhex(step["hash"])
        if step["side"] == "right":
            h = node_hash(h, sibling)
        else:
            h = node_hash(sibling, h)
    return h == bytes.fromhex(root_hash)

External Anchoring (RFC 3161 TSA)

When anchoring is enabled, the control plane submits the root_hash to an external RFC 3161 timestamp authority (TSA) after building the Merkle batch. The TSA issues a signed timestamp token that cryptographically binds the root hash to a wall-clock time.

The anchor object in root metadata:

"anchor": {
  "type": "rfc3161",
  "ref": "<base64-encoded DER TimeStampToken>",
  "published_at": "2026-03-12T10:05:03Z"
}

To verify the anchor independently:

1. Base64-decode anchor.ref to get the DER-encoded TimeStampToken.
2. Verify the TimeStampToken signature against the TSA's public certificate.
3. Extract messageImprint from the token and verify it equals SHA-256(unhex(root_hash)).
4. The genTime in the token is the TSA's assertion of when the root was submitted.

Every Merkle batch is anchored. If anchor is absent from a root metadata object, the batch was produced before anchoring was active and the proof is still valid for tamper detection.

Root Metadata Schema

The signed root object embedded in every inclusion proof:

Proof Availability Timing

Inclusion proofs are not available immediately after a request; the record must be batched first.

Typical timings (defaults, operator-configurable):

Poll GET /v1/verify/{record_hash} until status == "verified" to retrieve the proof. There is no webhook or callback for batch completion.

Security Properties

The Merkle ledger protects against post-hoc record alteration. It does not protect against a record being omitted from the ledger entirely; omission detection requires comparing the ledger_seq range against expected record counts.

Troubleshooting
