Export Destinations

For: Platform operators configuring audit event forwarding for self-hosted gateway nodes.

Operations Overview | Telemetry | CP Connectivity | Export Destinations

Export destinations define where self-hosted gateway nodes ship audit events (every request, policy decision, and security signal) in real time. Configure webhook endpoints (HTTP POST), syslog receivers, or both.

Table of Contents

• Overview
• Destination Types
• Org Defaults vs. Node-Specific
  • Override Model
  • Inheritance Fallback
  • Behavior Reference
• Configuring Destinations
  • Org Defaults
  • Node-Specific Destinations
• Testing a Destination
• Event Payload
• Troubleshooting

Overview

Audit events flow from the gateway runtime to export destinations continuously as requests are processed. Multiple destinations can be configured: events fan out to all active destinations simultaneously.

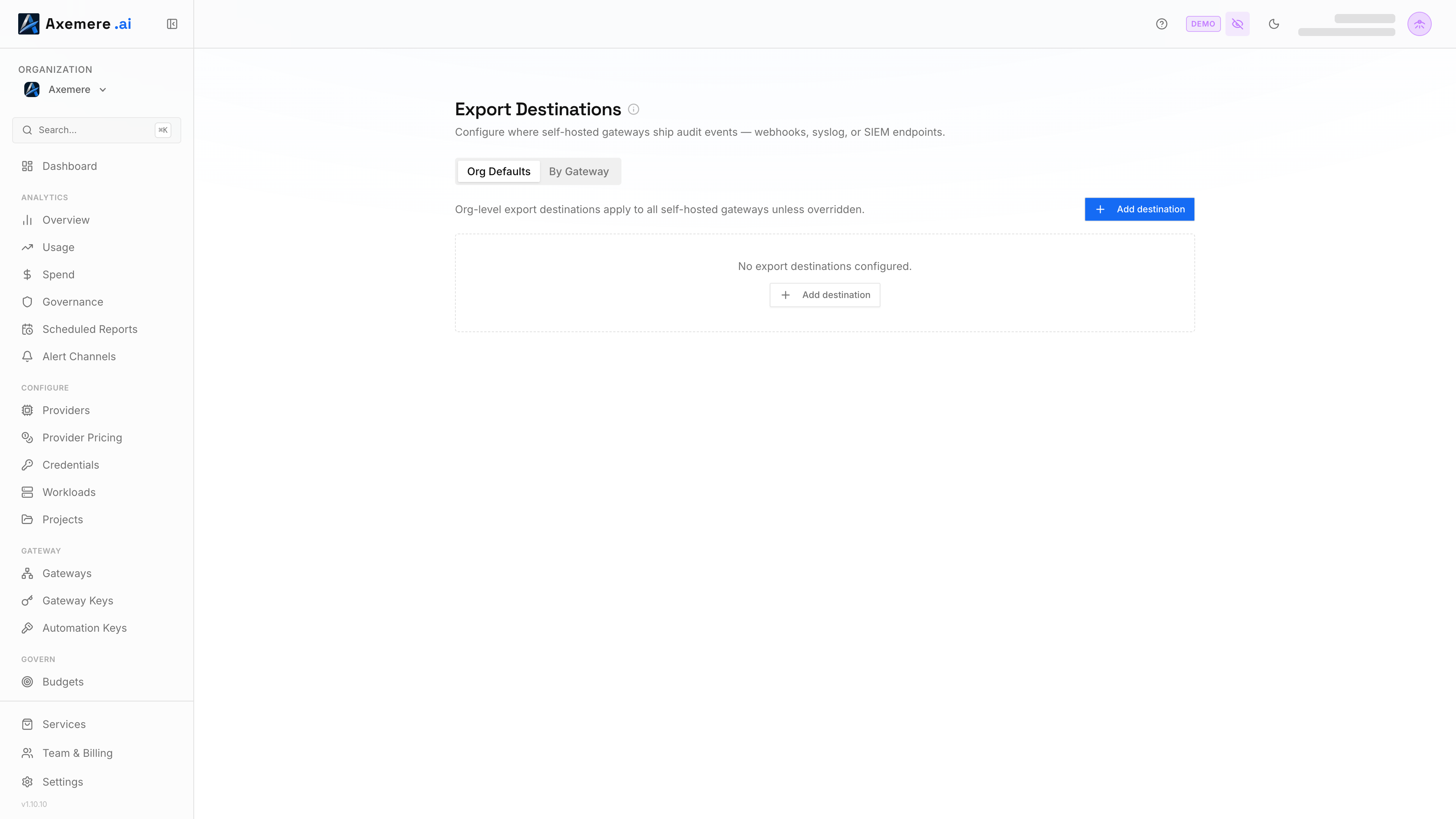

Export destinations are managed in the Axemere Console at Export Destinations (org-wide defaults) or per node via Gateways → [node] → Export.

Destination Types

Only webhook destinations support the Test button in the console. Syslog destinations return an informational response: verify connectivity by checking your syslog receiver's ingestion logs.

Org Defaults vs. Node-Specific

Override Model

Node-specific destinations replace org defaults; they do not add to them. This is the single most important thing to understand about how export routing works.

When a node has specific destinations configured, those are the only destinations that receive events from that node. Org defaults are completely bypassed regardless of the inheritance toggle setting.

Inheritance Fallback

The Inherit org defaults toggle is a fallback setting. It only takes effect when a node has no specific destinations of its own. This lets you:

1. Configure org-wide SIEM defaults once.
2. Enable inheritance on all nodes as a baseline.
3. Override individual nodes with their own destinations as needed; removing those destinations automatically falls back to org defaults.

When a node has specific destinations and inheritance is toggled on, the console shows "Fallback only — active when this node has no specific destinations" to make this clear.

Behavior Reference

Nodes with no destinations and inheritance off show a "no destinations" warning badge in the console.

Configuring Destinations

Org Defaults

Org-level destinations apply to any node that has no specific destinations and has inheritance enabled.

Console: Navigate to Export Destinations → Org Defaults → Add destination.

Changes to org defaults take effect the next time a node syncs its export configuration from the control plane.

Node-Specific Destinations

Override org defaults for individual nodes by configuring node-specific destinations.

Console — Export Destinations page: Navigate to Export Destinations → By Node, expand the node row, then click Add.

Console — Gateways page: Click the node row → Export tab → Add in the Node-specific section.

You can configure multiple node-specific destinations per node: events are delivered to all of them simultaneously.

Note on auth tokens: Auth tokens for webhook bearer authentication cannot be configured through the console form: the console shows an indicator when a token is already set, but does not expose a field to create or change it. Set auth_token via the admin API directly.

Testing a Destination

The Test button sends a synthetic test event to a webhook destination and reports the HTTP status and round-trip latency. Use this to verify:

• The endpoint URL is reachable from the control plane
• Any required network rules allow the connection
• The receiver accepts the event format

Test results are shown inline in the table as OK (Nms) or an error message. Results are not persisted: refresh the page to clear them.

Syslog destinations cannot be tested via the console; verify connectivity through your syslog receiver.

Event Payload

Webhook destinations receive JSON POST bodies. See the Telemetry guide for the full event schema including all event types (execution, approval, quarantine, risk_alert).

Troubleshooting
