Managed Gateway Guide

For: Platform engineers and operators configuring Axemere Gateway in managed (Axemere-hosted) or self-hosted distributed mode.

This guide covers managed gateway mode: a multi-tenant deployment model with API key authentication, per-org policy isolation, streaming configuration updates, and usage metering.

Table of Contents

• Overview
• Gateway Modes
• Enabling Managed Mode
• API Key Authentication
  • Creating an API Key
  • Listing API Keys
  • Revoking an API Key
  • Using an API Key
• Policy Distribution
  • Self-Hosted: Check-In Based Updates
  • Managed: Streaming Updates
  • Policy Durable Cache
• Fleet Configuration and Node Overlays
• Workload Distribution
• Credential Distribution
• Metering and Billing
  • Plan Tiers
  • Usage Reports
  • Querying Usage
• Getting Started
• Self-Hosted vs Managed
• CP Enrollment and mTLS
  • Self-Hosted: Customer-Initiated Bootstrap
  • Managed: Automated Bootstrap at Org Provisioning
  • Certificate Lifecycle
• Operator Configuration
• Troubleshooting
  • API key rejected (HTTP 401)
  • Stale policy after overlay update
  • Overlay rejected by plan tier
  • Gateway cannot connect to control plane
  • Credential revocation not taking effect

Getting Started

To use the managed gateway as an end user:

1. Obtain an API key from your organization admin. Keys are created via Gateway Keys in the Axemere Console left sidebar, or via the OrgService.CreateAPIKey gRPC endpoint on the control plane.
2. Choose your endpoint based on environment:
   • Development: https://dev.gcp.gw.axemere.ai
   • Production: https://us.gw.axemere.ai (coming soon)
3. Authenticate by including the API key as a Bearer token:

   Authorization: Bearer mvgc_k_<your-api-key>


4. Send requests to POST /v1/actions:execute -- the org_id is derived from your API key automatically.

curl -s -X POST https://us.gw.axemere.ai/v1/actions:execute \
  -H "Authorization: Bearer mvgc_k_<your-api-key>" \
  -H "Content-Type: application/json" \
  -d '{
    "schema": "mvgc.action_request.v2",
    "workload_id": "my-app",
    "action": {
      "type": "ai.infer",
      "method": "POST",
      "target_host": "api.openai.com",
      "params": {"model": "gpt-4o-mini", "messages": [{"role": "user", "content": "Hello"}]}
    }
  }'

TLS is provided by the managed endpoint -- no client certificates needed.

Self-Hosted vs Managed

Choose self-hosted when you need full infrastructure control, air-gapped environments, or custom deployment topologies. Choose managed when you want zero-ops gateway access with API key authentication and centralized metering.

Overview

Axemere Gateway supports two deployment models:

1. Self-hosted gateway -- the customer runs the gateway and pulls configuration updates from the control plane via periodic check-in calls.
2. Managed gateway -- the gateway operates as a multi-tenant SaaS service, authenticating requests with API keys, pushing configuration updates via gRPC streaming, and metering usage per organization.

Managed mode adds API key authentication, per-org policy overlays, workload and credential distribution, and monthly usage tracking on top of the existing gateway capabilities.

Gateway Modes

Set MVGC_GATEWAY_MODE to select the mode:

Enabling Managed Mode

Two environment variables control managed gateway behavior:

To enable managed mode:

export MVGC_GATEWAY_MODE=managed
export MVGC_CP_ADDR=cp.example.com:9090

When MVGC_GATEWAY_MODE=managed, every request to the gateway must include a valid API key in the Authorization header:

Authorization: Bearer mvgc_k_<api-key>

The gateway validates the key by computing its SHA-256 hash and looking it up in the api_keys table. Validated keys are cached for 30 seconds to reduce database lookups. If the key is missing, expired, or revoked, the request is rejected with HTTP 401.

In self-hosted mode (default), no API key is required on /v1/actions:execute.

API Key Authentication

API keys are created via the control plane's OrgService.CreateAPIKey gRPC endpoint. The plaintext key is returned exactly once at creation time -- store it securely.

Creating an API Key

Using grpcurl:

grpcurl -plaintext -d '{
  "org_id": "019508a3-1234-7abc-bdef-000000000001",
  "name": "production-gateway",
  "scopes": ["gateway:execute", "gateway:read"],
  "expires_in": "8760h"
}' cp.example.com:9090 mvgc.v1.OrgService/CreateAPIKey

Response:

{
  "apiKeyId": "ak-019508a3-abcd-7def-9012-000000000001",
  "key": "mvgc_k_abc123...xyz789",
  "expiresAt": "2027-03-24T00:00:00Z"
}

Listing API Keys

grpcurl -plaintext -d '{
  "org_id": "019508a3-1234-7abc-bdef-000000000001"
}' cp.example.com:9090 mvgc.v1.OrgService/ListAPIKeys

Revoking an API Key

grpcurl -plaintext -d '{
  "api_key_id": "ak-019508a3-abcd-7def-9012-000000000001",
  "org_id": "019508a3-1234-7abc-bdef-000000000001"
}' cp.example.com:9090 mvgc.v1.OrgService/RevokeAPIKey

Revoked keys are immediately rejected. The gateway's credential cache evicts revoked keys on the next check-in or streaming update.

Using an API Key

Include the key in every gateway request:

curl -s -X POST https://gw.example.com/v1/actions:execute \
  -H "Authorization: Bearer mvgc_k_abc123...xyz789" \
  -H "Content-Type: application/json" \
  -d '{
    "schema": "mvgc.action_request.v2",
    "workload_id": "my-app",
    "action": {
      "type": "ai.infer",
      "method": "POST",
      "target_host": "api.openai.com",
      "params": {"model": "gpt-4o-mini", "messages": [{"role": "user", "content": "Hello"}]}
    }
  }'

In managed mode, the org_id is derived from the API key -- callers do not need to supply it explicitly.

Policy Distribution

Axemere Gateway uses different configuration distribution mechanisms depending on the gateway mode.

Self-Hosted: Check-In Based Updates

In self-hosted mode, gateways poll the control plane at a configurable interval (default 60 seconds) using the RegistryService.CheckIn gRPC call.

The CheckInResponse carries staleness flags for policy, workloads, credentials, and export config. The gateway fetches updated configurations only when a version is stale, minimizing bandwidth. min_idle_threshold (int64 seconds) lets the CP adjust the polling interval server-side.

Configure the check-in interval:

export MVGC_CHECKIN_IDLE_THRESHOLD=60s  # default

Managed: Streaming Updates

In managed mode, the gateway establishes a long-lived gRPC stream to the control plane using ConfigService.SubscribeUpdates. The control plane pushes configuration changes in real time:

Event types:

If the stream disconnects, the gateway reconnects with exponential backoff and continues operating with its cached configuration.

Policy Durable Cache

Self-hosted gateways cache the last-known-good policy bundle in the gateway_bundles Postgres table. If the control plane is unreachable at startup, the gateway loads the cached bundle and operates normally. The cache is updated after every successful GetPolicyBundle fetch.

Fleet Configuration and Node Overlays

In managed mode, the control plane supports a layered policy model:

1. Base bundle -- the default policy bundle for the org
2. Org overlay -- org-level policy customizations (stored in org_policy_overlays)
3. Node overlay -- per-node policy overrides (stored in node_policy_overlays)

These layers are merged to produce an effective bundle that is cached in the effective_bundles table and distributed to gateways.

Update an org's policy overlay via the PolicyService.UpdateOrgPolicyOverlay gRPC call:

grpcurl -plaintext -d '{
  "org_id": "019508a3-1234-7abc-bdef-000000000001",
  "overlay_yaml": "'"$(base64 < overlay.yaml)"'",
  "updated_by": "admin@example.com"
}' cp.example.com:9090 mvgc.v1.PolicyService/UpdateOrgPolicyOverlay

Overlay YAML follows the same structure as a regular policy bundle but only includes the layers and rules you want to modify. The plan tier determines which layers are permitted in overlays.

Node bundle overrides are stored in node_bundle_overrides and let you assign a different bundle to specific nodes in a fleet, for example to test a new policy on a canary node before rolling it out org-wide.

Workload Distribution

In distributed mode (both self-hosted and managed), workload configurations are managed centrally on the control plane and distributed to gateways.

Gateways fetch workloads via WorkloadService.GetWorkloads:

grpcurl -plaintext -d '{
  "org_id": "019508a3-1234-7abc-bdef-000000000001",
  "since_version": "0"
}' cp.example.com:9090 mvgc.v1.WorkloadService/GetWorkloads

The response includes all workloads (or only those changed since since_version) and a version number. The gateway maintains a workload cache with a 5-minute TTL. In managed mode, workload changes are also pushed via WorkloadUpdatedEvent on the streaming channel.

The organizations.workloads_version counter is incremented whenever a workload is created, updated, or deleted. Check-in responses include this version so gateways know when to re-fetch.

Credential Distribution

Credential configurations (mode, provider, secret references) are distributed on a per-node basis. Each node fetches only the credentials it is allowed to use:

• org_wide credentials are delivered to every node.
• node_scoped credentials are delivered only to nodes with an explicit assignment.
• export_auth credentials are never distributed to nodes; they are resolved server-side when building the export destination list.

Gateways fetch their resolved set via CredentialService.ListNodeCredentials:

grpcurl -plaintext -d '{
  "org_id": "019508a3-1234-7abc-bdef-000000000001",
  "node_id": "a1b2c3d4-e5f6-7890-abcd-ef0123456789"
}' cp.example.com:9090 mvgc.v1.CredentialService/ListNodeCredentials

The credential cache uses a shorter 60-second TTL because credential changes (especially revocations) are security-sensitive. In managed mode, CredentialUpdatedEvent pushes revocations immediately.

The organizations.credentials_version counter tracks changes; check-in credentials_stale is set when the gateway's version diverges from the CP's current version.

Security note: Secret values (API keys, tokens) are never transmitted over the wire. The secret_ref field contains a reference to the secret store -- gateways resolve secrets locally from the configured secret backend.

Metering and Billing

Managed mode tracks per-org usage for billing and capacity planning.

Plan Tiers

Each organization has a plan tier that controls:

• Which policy overlay layers are permitted
• Monthly request limits
• Monthly token limits
• Whether overage is allowed

Permitted overlay layers by tier:

Plan tiers are stored in the org_plans table and enforced when applying policy overlays. An overlay referencing a layer not permitted by the plan tier is rejected with an error; this is the most common cause of unexpected UpdateOrgPolicyOverlay failures. Verify the org's tier before submitting an overlay.

When an org exceeds its monthly_request_limit or monthly_token_limit, the gateway enforces overage rules: if overage_enabled is false (the default), requests are denied with HTTP 429. If overage_enabled is true, requests continue and are billed at the overage rate.

Usage Reports

Monthly usage is aggregated in the org_monthly_usage table with the following metrics:

Usage is aggregated per (org_id, period_start) where period_start is the first day of the billing month. The gateway increments counters after each successful request.

Querying Usage

The control plane exposes HTTP report endpoints on its metrics server (default :9091):

# Usage report (request counts, tokens, active workloads)
curl -s "http://cp.example.com:9091/v1/reports/usage?org_id=019508a3-1234-7abc-bdef-000000000001"

# Spend report (cost breakdown)
curl -s "http://cp.example.com:9091/v1/reports/spend?org_id=019508a3-1234-7abc-bdef-000000000001"

Troubleshooting

API key rejected (HTTP 401)

1. Verify the key has not been revoked: ListAPIKeys and check status is active
2. Check the key has not expired: compare expires_at with the current time
3. Ensure the Authorization header uses the Bearer scheme
4. Confirm MVGC_GATEWAY_MODE=managed is set on the gateway

Stale policy after overlay update

In self-hosted mode, the gateway may take up to MVGC_CHECKIN_IDLE_THRESHOLD (default 60 seconds) to detect a policy change. To force an immediate update:

1. Clear the policy cache via the admin API: DELETE /v1/admin/policy/cache
2. Reduce MVGC_CHECKIN_IDLE_THRESHOLD temporarily
3. Or restart the gateway to trigger an immediate check-in

In managed mode, policy changes are pushed immediately via the streaming channel. If the gateway is not receiving updates:

1. Check gateway logs for streaming connection errors
2. Verify MVGC_GATEWAY_MODE=managed is set
3. Ensure the control plane is reachable at MVGC_CP_ADDR

Overlay rejected by plan tier

If UpdateOrgPolicyOverlay returns an error about disallowed layers:

1. Check the org's plan tier in org_plans
2. Verify the overlay only references layers permitted by the tier
3. Upgrade the plan tier if additional layers are needed

Gateway cannot connect to control plane

1. Verify MVGC_CP_ADDR is correct and reachable
2. Check TLS certificate configuration (MVGC_CP_CA_CERT, MVGC_NODE_CERT, MVGC_NODE_CERT_KEY)
3. In self-hosted mode, the gateway falls back to its durable policy cache if the CP is unreachable -- check logs for "using cached bundle" messages

Credential revocation not taking effect

• In self-hosted mode: wait for the next check-in cycle (up to 60 seconds) or restart
• In managed mode: the CredentialUpdatedEvent should push immediately -- check the streaming connection is active
• The credential cache TTL is 60 seconds; even without a push event, the cache will expire and re-fetch

CP Enrollment and mTLS

Both self-hosted and managed gateways must enroll with the control plane to obtain an mTLS certificate. This certificate authenticates the gateway on all subsequent CP calls (CheckIn, GetPolicyBundle, SubmitRecordHash, etc.). Without it, the CP rejects the connection.

The API key authenticates end-user requests to the gateway. The mTLS certificate authenticates the gateway itself to the control plane. These are separate concerns; a managed gateway needs both.

Self-Hosted: Customer-Initiated Bootstrap

For self-hosted gateways, the customer creates a bootstrap token manually:

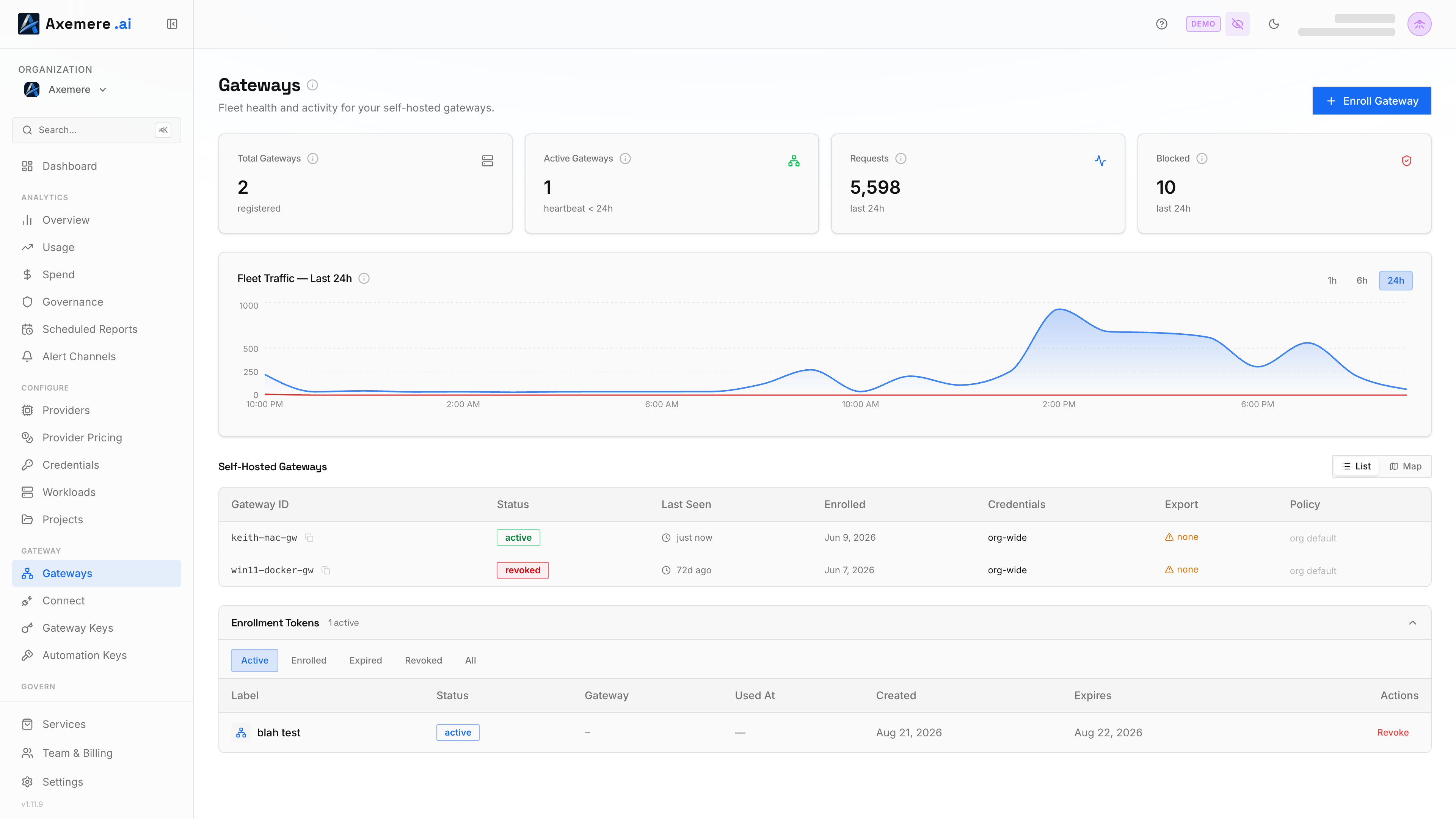

1. Create a bootstrap token in the Axemere Console; navigate to Gateways, click + Enroll Gateway, and click Generate Token.

2. Configure the gateway with the token and org ID:

   Via environment variables:

   export MVGC_BOOTSTRAP_TOKEN="<token from step 1>"
   export MVGC_ORG_ID="<your org id>"
   export MVGC_CP_ADDR="gcp.cp.axemere.ai:9090"
   export MVGC_NODE_ID="my-gateway-01"


   Or in mvgc.yaml (see Config File):

   control_plane:
     addr:            "gcp.cp.axemere.ai:9090"
     bootstrap_token: "<token from step 1>"

   gateway:
     org_id:  "<your org id>"
     node_id: "my-gateway-01"


3. Start the gateway. On first boot, runMTLSProvisioning detects no cert on disk, generates a keypair and CSR, calls RegisterNode (which is exempt from mTLS), and receives a 90-day certificate. The cert is stored to MVGC_KEY_DIR (default ./keys).

4. The bootstrap token is consumed on first successful enrollment and cleared automatically; it does not need to be removed from the config file manually. All subsequent starts load the cert from disk.

Managed: Automated Bootstrap at Org Provisioning

Managed gateways have no customer performing manual steps. The bootstrap token is created automatically as part of the org provisioning workflow:

The platform API orchestrates this automatically when a new org is onboarded. The operator never handles tokens manually. After enrollment, the MVGC_BOOTSTRAP_TOKEN value in the Helm release can be cleared; it has been consumed and cannot be reused.

Certificate Lifecycle

After initial enrollment, the cert lifecycle is identical for both self-hosted and managed:

Self-renewal means zero operator intervention after initial enrollment. The gateway manages its own cert lifecycle indefinitely.

For the full mTLS design including CP enforcement and threat model, contact your Axemere representative.

Operator Configuration

For operators deploying a custom managed gateway fleet (rather than using Axemere's hosted service), set MVGC_GATEWAY_MODE=managed on the gateway pods. This enables:

• Streaming configuration updates via ConfigService.SubscribeUpdates
• Push-maintained API key auth map (no check-in polling)
• Per-org monthly usage metering

Key environment variables for managed fleet operators:

Contact Axemere support if you need additional infrastructure configuration details.

See also:

• Glossary for term definitions
• Network Operations Guide for policy DSL and administration
• Developer Integration Guide for request/response schemas
• IT Setup Guide for deployment instructions
• IT Setup Guide for Kubernetes and Docker deployment details
